Visurai — Visual Learning Copilot

Visurai — Visual Learning Copilot

Turn text into a narrated visual story: scenes, images, and audio — in seconds.

🏆 Built at the Good Vibes Only AI/ML Buildathon @ USC (2025)

Service Link

https://visurai-story-maker.lovable.app/

Overview

Project Demo : https://drive.google.com/file/d/16_YFVfVJoDPQqLkXXaRXSv_Dyr98bxey/view?usp=sharing

Visurai helps dyslexic and visual learners comprehend material by converting text into a sequence of AI-generated images with optional narration.

Paste any text and get:

• A title and segmented scenes that preserve key facts and names
• High-quality images per scene (Flux via Replicate or OpenAI gpt-image-1)
• Per‑scene TTS audio and a single merged audio track with a timeline
• Optional OCR to start from an image instead of text

Features

• Context‑aware scene segmentation and detail‑preserving visual prompts (GPT‑4o)
• Image generation providers:
• Narration:
• Live progress via SSE (/generate_visuals_events)
• OCR routes: generate from image URL or upload
• Absolute asset URLs using PUBLIC_BASE_URL (e.g., ngrok) for frontend access

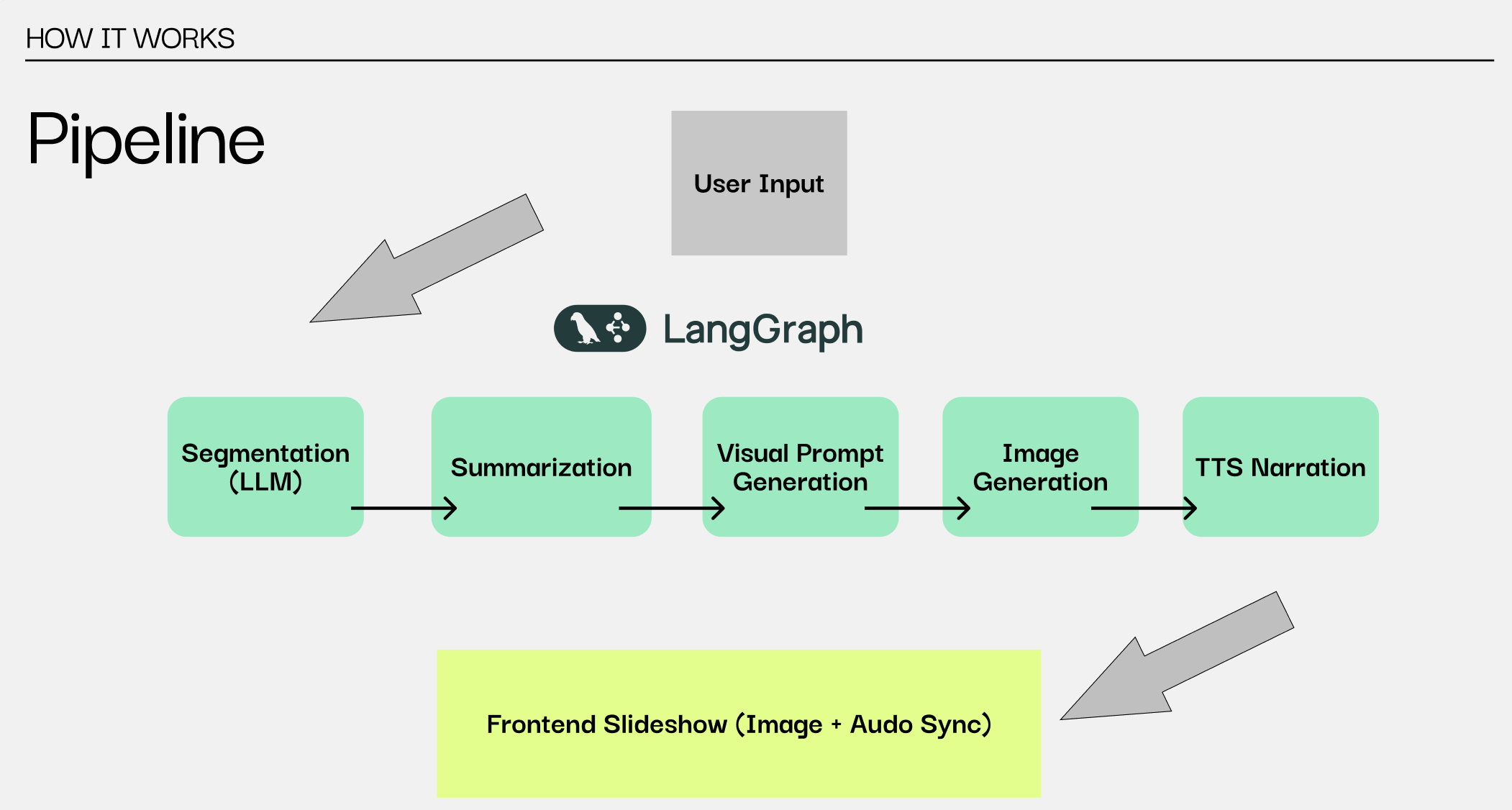

Architecture

Text / Image → OCR (optional)
				↓
Scene segmentation (GPT‑4o)
				↓
Detail‑preserving visual prompts
				↓
Image generation (Replicate Flux or OpenAI gpt‑image‑1)
				↓
TTS per scene → ffmpeg concat → single audio + timeline
				↓
Frontend (React) consumes JSON, images, audio, and SSE

Repository Structure

good-vibes-only/
├── backend/
│   ├── main.py            # FastAPI app (SSE, OCR, TTS, visuals)
│   ├── image_gen.py       # Image provider adapters (Replicate/OpenAI)
│   ├── tts.py             # OpenAI TTS + ffmpeg merge
│   ├── settings.py        # Pydantic settings + .env loader
│   ├── pyproject.toml     # Backend deps (use uv/pip)
│   └── uv.lock
└── frontend/              # React app that calls the backend

Prerequisites

• Python 3.10+ (tested up to 3.13)
• ffmpeg installed (required for merged audio)
• Provider keys as needed:

Backend — Quick Start (run from repo root)

From the repo root:

# 1) Install deps (using uv)
uv sync && cd ..

# 2) Create backend/.env with your keys and config (see below)

# 3) Run the API from the repo root
uv run uvicorn backend.main:app --host 0.0.0.0 --port 8000 --reload

backend/.env (example)

# LLM
OPENAI_API_KEY=sk-...
LLM_PROVIDER=openai
LLM_MODEL=gpt-4o-mini

# Image provider (replicate | openai)
IMAGE_PROVIDER=replicate
REPLICATE_API_TOKEN=r8_...
REPLICATE_MODEL=black-forest-labs/flux-1.1-pro
REPLICATE_ASPECT_RATIO=16:9

# OpenAI Images (if IMAGE_PROVIDER=openai)
OPENAI_IMAGE_MODEL=gpt-image-1
OPENAI_IMAGE_SIZE=1536x1024   # allowed: 1024x1024, 1024x1536, 1536x1024, auto

# TTS
TTS_PROVIDER=openai
TTS_MODEL=gpt-4o-mini-tts
TTS_VOICE=alloy
TTS_OUTPUT_DIR=/tmp/seequence_audio

# Absolute URLs for frontend (ngrok/domain)
PUBLIC_BASE_URL=https://<your-ngrok-subdomain>.ngrok-free.dev

# CORS (optional – include your frontend origin when using credentials)
CORS_ORIGINS=https://<your-ngrok-subdomain>.ngrok-free.dev

Verify

# Health
curl -sS <http://127.0.0.1:8000/health>

# One image (provider-dependent)
curl -sS <http://127.0.0.1:8000/generate_image> \\
	-H "Content-Type: application/json" \\
	-d '{
		"prompt": "Clean educational infographic showing 1 AU ≈ 1.496e8 km. Label Earth and Sun. High contrast."
	}'

# Visuals + merged audio
curl -sS <http://127.0.0.1:8000/generate_visuals_single_audio> \\
	-H "Content-Type: application/json" \\
	-d '{ "text": "The Sun is a G-type star...", "max_scenes": 5 }'

Frontend — Quick Start (pnpm)

Configure your frontend to call the backend base URL (e.g., PUBLIC_BASE_URL).

Typical React workflow:

cd frontend
pnpm install
pnpm dev

Ensure your frontend uses absolute URLs from the backend responses (e.g., image_url, audio_url), which already include the PUBLIC_BASE_URL when set.

If your frontend needs an explicit base URL, set it (e.g., Vite):

# .env.local in frontend (example)
VITE_API_BASE=https://<your-ngrok-subdomain>.ngrok-free.dev

Engine Switch: LangGraph vs Imperative

The backend can run either:

• Imperative flow (default): sequential segmentation → prompts → images
• LangGraph flow: graph-based orchestration

Enable LangGraph by setting an env var and restarting the server:

export PIPELINE_ENGINE=langgraph
uv run uvicorn backend.main:app --host 0.0.0.0 --port 8000 --reload

Endpoints are the same (e.g., POST /generate_visuals), but execution uses the graph.

API Highlights

• POST /generate_visuals → scenes with image URLs and a title
• POST /generate_visuals_with_audio → scenes + per‑scene audio URLs + durations
• POST /generate_visuals_single_audio → merged audio_url, total duration, timeline, scenes
• GET /generate_visuals_events → Server‑Sent Events stream for progress
• POST /visuals_from_image_url and /visuals_from_image_upload → OCR then visuals

Troubleshooting

• Audio fails to load after revisiting a story
• OpenAI Images error: invalid size
• Replicate credit errors
• Mixed content blocked
• CORS

License

MIT License © 2025 Visurai Team

Made with care for learners who think in pictures.
